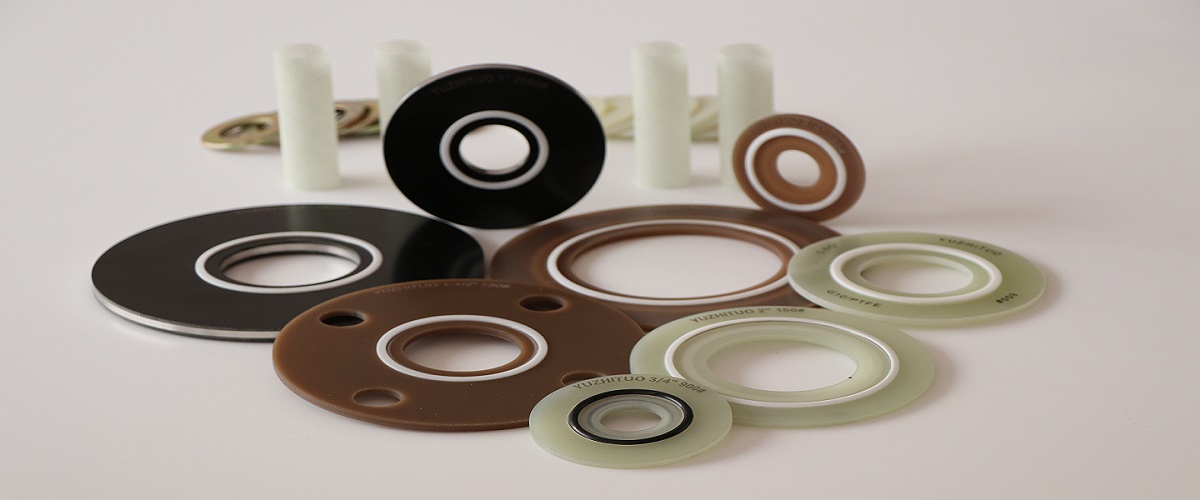

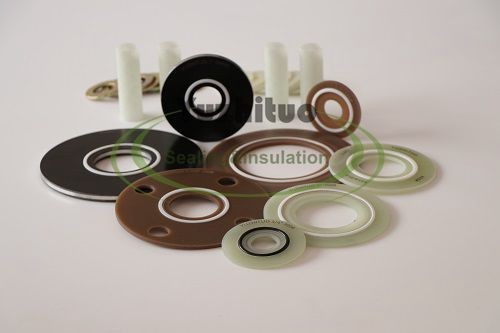

Insulating Gasket for Flange Corrosion Prevention

  • Views:1381
DESCRIPTION INQUIRY US

Insulating Gaskets are used for sealing and isolating flanges to prevent corrosion. They are used for dissimilar material flanges and cathodic protection pipelines to control losses due to corrosion. They can be used to control stray electric currents in piping at oil, gas, water, refinery, and chemical plants, to increase the effectiveness of cathodic protection systems.

Insulating Gaskets have three types:

Type E (full face) insulating gasket provides complete protection of both flange faces. The gasket has same outside diameter of flanges. This feature will prevent collection of foreign matter between the flange faces to ensure complete cathodic isolation.
Type F (ring gasket) insulating gasket is manufactured to fit only the raised face surface of the flanges. Outside diameter of the gasket is designed to be slightly less than the inside diameter of the bolt circle. It is recommended that the flanges be wrapped to prevent foreign material from "shorting out" the flanges.

Type D Isolating Gaskets are available for RTJ flanges, the common material is phenolic and GRE.
